Microwave parts

    Waveguide assemblies for microwave

    Microwave frequncy : 2.45GHz

    Available load power : 0.7~6kW

    Standard : WR340

    Custom-made available

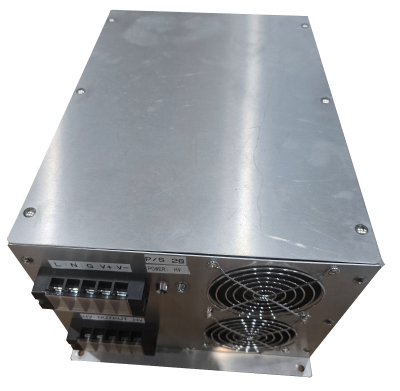

    2kW Microwave power supply

    Input power : AC 180~240V, single phase

    Microwave frequncy : 2.45GHz

    Microwave output power : max. DC 4,200V, 2kW

    Interface : 1~5V analogue control

    Available control range : 20~100%

    Size : 258[W] x 208[H] x 390[L]

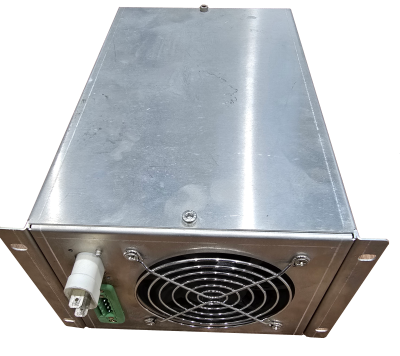

    1kW Microwave power supply

    Input power : AC 180~240V, single phase

    Microwave frequncy : 2.45GHz

    Microwave output power : max. DC 4,200V, 1kW

    Interface : 1~5V analogue control

    Available control range : 20~100%

    Size : 180[W] x 121[H] x 244[L]

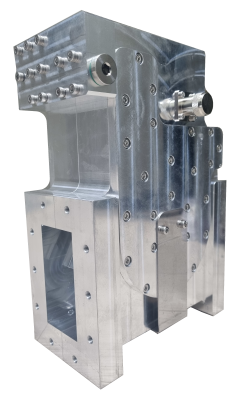

    Microwave circulator

    Material : Aluminum

    Microwave frequncy : 2.45GHz ± 50MHz

    Input power : max. 3kW continous

    Insert loss : max. 0.3dB

    Isolation : min. 20dB

    Coupler probe : Type N female

    Water connection : PT 1/4 female threads

    Water flow : Inlet 20 ± 5 ℃, min. 3 lpm

    Weight : 6.6 kgs

    Size : 258.4 x 95.3 x 172.7
